Gates and Boolean Basics

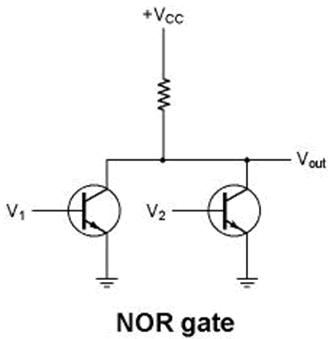

NOR gate




A B Result
0 0 1
0 1 0
1 0 0
1 1 0


HOW IT WORKS:

Now I am sure you are understanding how these transistors work. In this case only one of the control values must be "on" for the electricity to flow to ground and cause the output value to be "off".
