Analysis Classes

An initial reading of the use cases suggests that the following will be part of the system.

A controller object representing the ATM itself (managing the boundary objects listed below.)
Boundary objects representing the individual component parts of the ATM:
- Operator panel.
- Card reader.
- Customer console, consisting of a display and keyboard.
- Network connection to the bank.
- Cash dispenser.
- Envelope acceptor.
- Receipt printer.
Controller objects corresponding to use cases. (Note: class ATM can handle the Startup and Shutdown use cases itself, so these do not give rise to separate objects here.)
- Session
- Transaction (abstract generalization, responsible for common features, with concrete specializations responsible for type-specific portions)
An entity object representing the information encoded on the ATM card inserted by customer.
An entity object representing the log of transactions maintained by the machine.

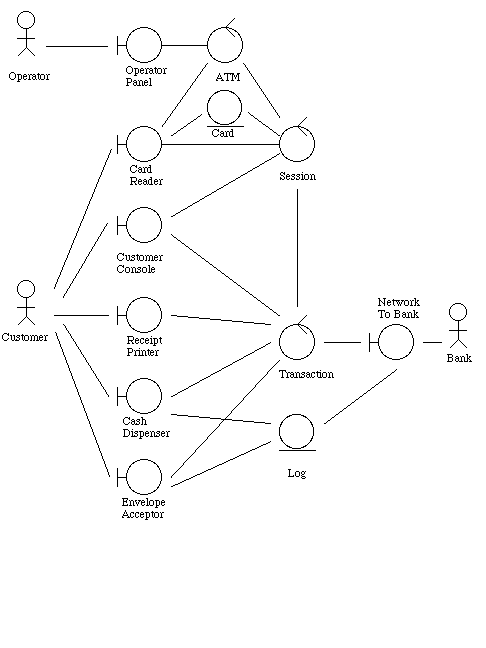

This leads to the following diagram of analysis classes:

[ Analysis Class Diagram ]
