Sequence Diagrams for the Address Book Example

Each of the use cases discovered in the analysis of the system will be realized by a sequence of operations involving the various objects comprising the system.

Add a Person Use Case Sequence Diagram

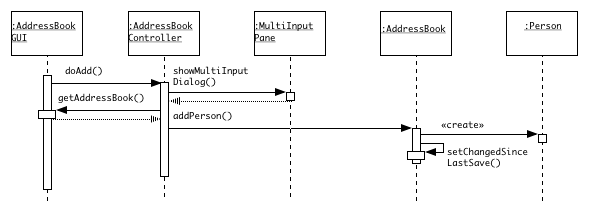

[ Sequence for Adding a Person ]

Edit a Person Use Case Sequence Diagram

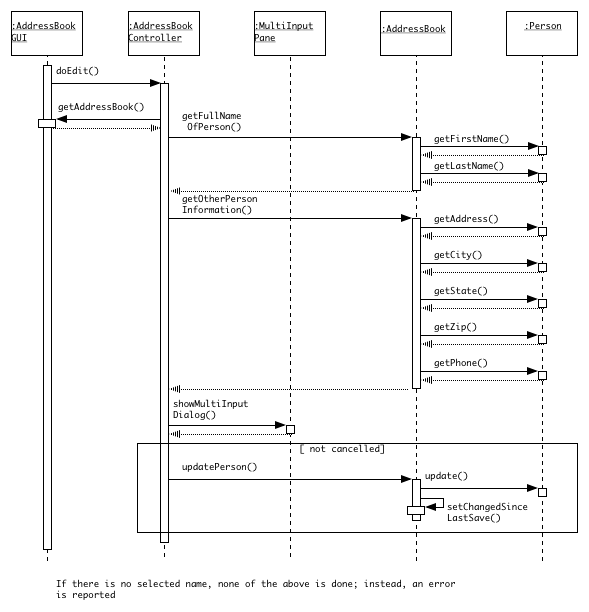

[ Sequence for Editing a Person ]

Delete a Person Use Case Sequence Diagram

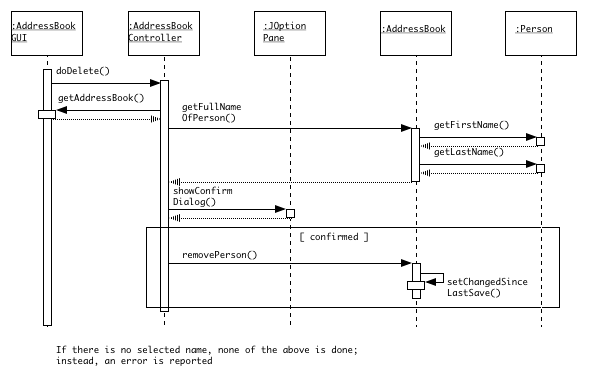

[ Sequence for Deleting a Person ]

Sort Entries By Name Use Case Sequence Diagram

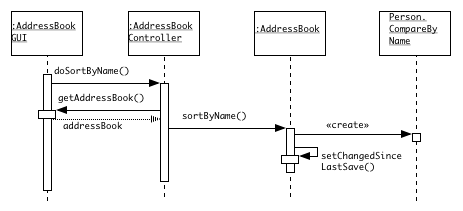

[ Sequence for Sorting by Name ]

Sort Entries By Zip Use Case Sequence Diagram

[ Sequence for Sorting by ZIP ]

Print Entries Use Case Sequence Diagram

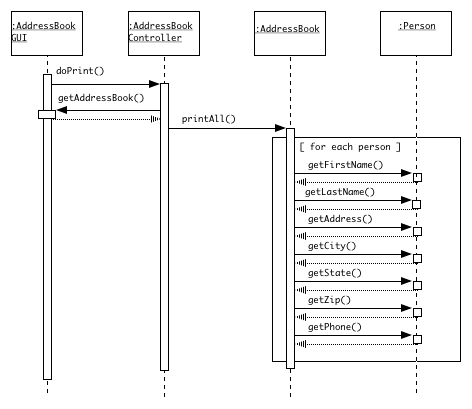

[ Sequence for Printing ]

Create New Address Book Use Case Sequence Diagram

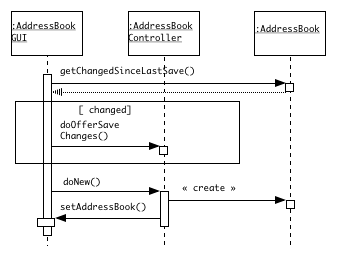

[ Sequence for Creating New ]

Open Existing Address Book Use Case Sequence Diagram

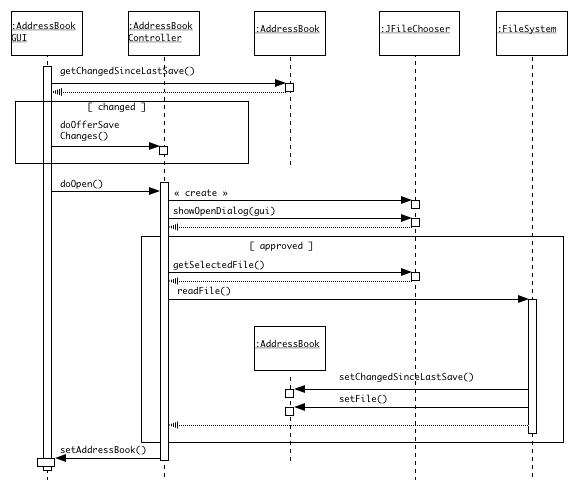

[ Sequence for Opening Existing ]

Save Address Book Use Case Sequence Diagram

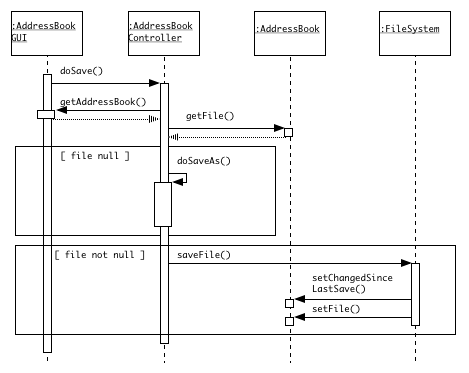

[ Sequence for Saving ]

Save Address Book As ... Use Case Sequence Diagram

The Sequence Diagram for the Save Address Book As ... Use Case is left as an exercise to the student

Offer To Save Changes Extension Use Case

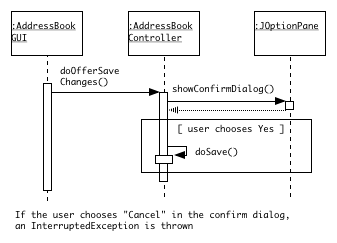

[ Sequence for Offering to Save Changes ]
